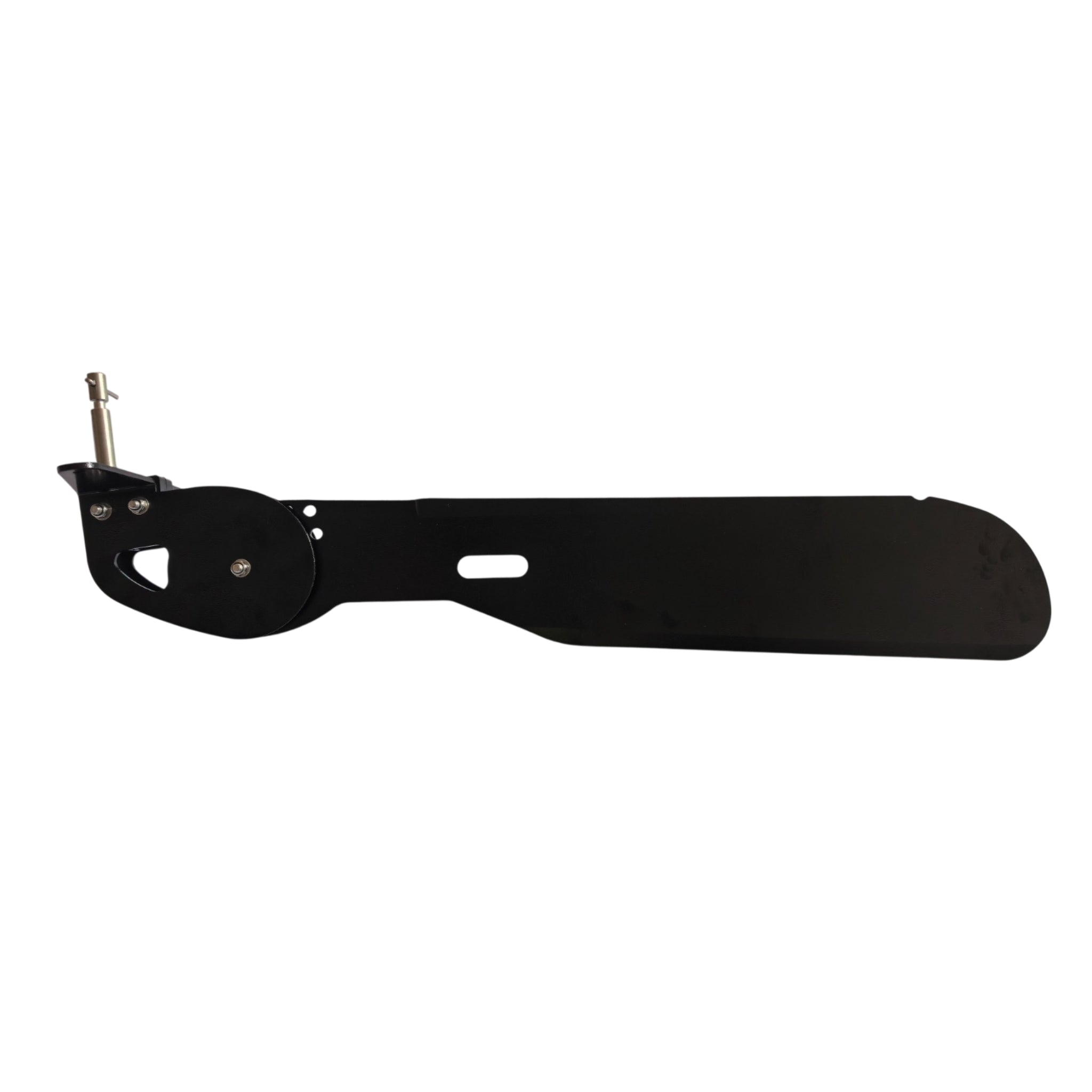

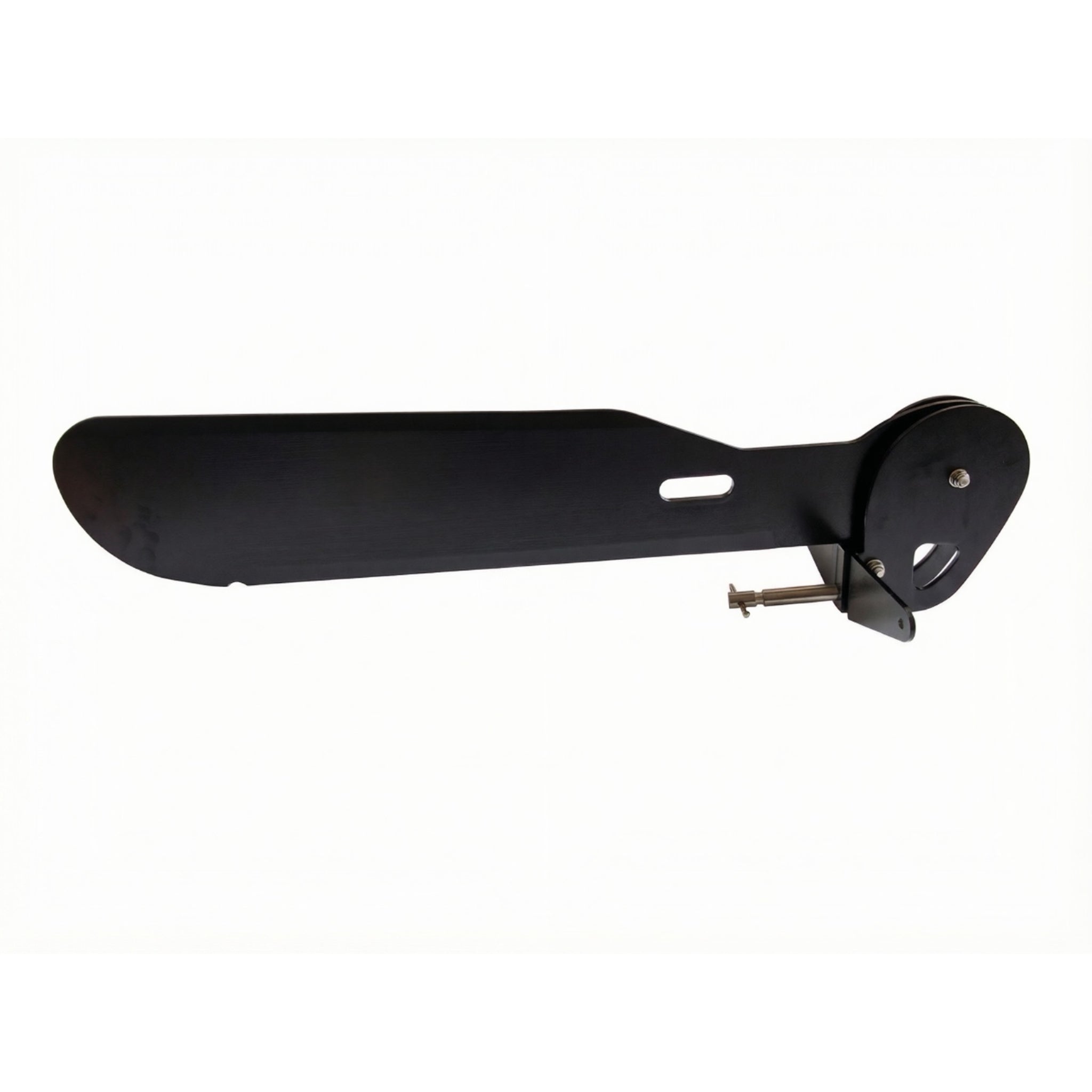

Universal Kayak Rudder

Improve steering and tracking with this replacement kayak rudder. Designed to mount vertically to the stern of a compatible kayak, this rudder helps your kayak track more effectively in a straight line while providing additional steering control for turns and changing conditions.

Constructed with a metal rudder blade and metal housing, this replacement rudder is designed for regular use and can be connected to an existing rudder control system or used as part of a new installation.

Please check the mounting dimensions before ordering. Kayak rudder systems and mounting points vary between kayak models, so compatibility should be confirmed using the measurements below.

KEY FEATURES

• Metal Construction: Metal blade and housing provide a sturdy and durable rudder assembly.
• Improved Tracking: Helps your kayak maintain a straighter course while paddling.
• Improved Steering: Provides additional steering control for sharper and quicker turns.
• Vertical Stern Mount: Designed to mount vertically at the stern of a compatible kayak.
• Rudder Control Compatible: Can be connected to existing rudder wiring or incorporated into a suitable rudder-control installation.
• Wear-Resistant Construction: Designed for regular use on the water.
• Black Finish: Neutral black finish suits a wide range of kayak setups.

COMPATIBILITY & MOUNTING DIMENSIONS

Although this rudder is designed to suit a wide range of kayaks, rudder mounting systems are not identical across all kayak models.

Please compare your existing rudder mounting arrangement with the following measurements before ordering:

• Screw-Hole Spacing: 15cm
• Rudder Pin Length: 6.1cm
• Rudder Pin Diameter: 1cm
• Side Hole Diameter: 0.4mm

Important: Do not rely solely on your kayak brand or model when determining compatibility. Measuring your existing rudder mounting points is the best way to confirm suitability.

RUDDER BLADE

The rudder features a metal blade measuring approximately 49.5cm in length.

• Blade Length: 49.5cm
• Blade Width – Top: 8.5cm
• Blade Width – Bottom: 9.5cm

The blade helps provide directional control and assists the kayak in maintaining its course, particularly when dealing with wind or cross-currents.

RUDDER CONTROL

The rudder can be connected to an existing kayak rudder control system or incorporated into a suitable new installation.

When correctly connected to a compatible foot-controlled rudder system, the rudder allows the paddler to make steering adjustments without removing their hands from the paddle.

IMPORTANT – NOT SPRING LOADED

This rudder is not spring loaded.

Please take this into consideration when replacing an existing rudder and ensure the rudder design is suitable for your kayak's existing steering and deployment system.

SPECIFICATIONS

• Product: Universal Kayak Rudder
• Housing Material: Metal
• Blade Material: Metal
• Colour: Black
• Blade Length: Approximately 49.5cm
• Blade Width – Top: Approximately 8.5cm
• Blade Width – Bottom: Approximately 9.5cm
• Screw-Hole Spacing: Approximately 15cm
• Rudder Pin Length: Approximately 6.1cm
• Rudder Pin Diameter: Approximately 1cm
• Side Hole Diameter: Approximately 0.4mm
• Weight: Approximately 800g
• Spring Loaded: No

WHAT'S INCLUDED

• 1 × Kayak Rudder Blade and Housing

Not included: Split pin for the rudder pin.

IMPORTANT INFORMATION

Please measure your existing rudder mounting points before ordering. Kayak rudder systems can vary considerably between different kayak designs.

This product is the rudder blade and housing only. Existing rudder cables, control lines, foot controls, mounting hardware and other steering components are not included unless specifically stated.

The supplied split pin is not included. If your installation requires a split pin, you will need to source a suitable replacement separately.

Always check that the rudder is securely mounted and correctly connected to the steering system before launching. Inspect the rudder, mounting points and control cables regularly for wear or damage.

A practical replacement rudder for compatible kayak steering systems. With a metal blade and housing, 49.5cm blade length and clearly defined mounting dimensions, this rudder provides a straightforward replacement option for compatible kayaks.
